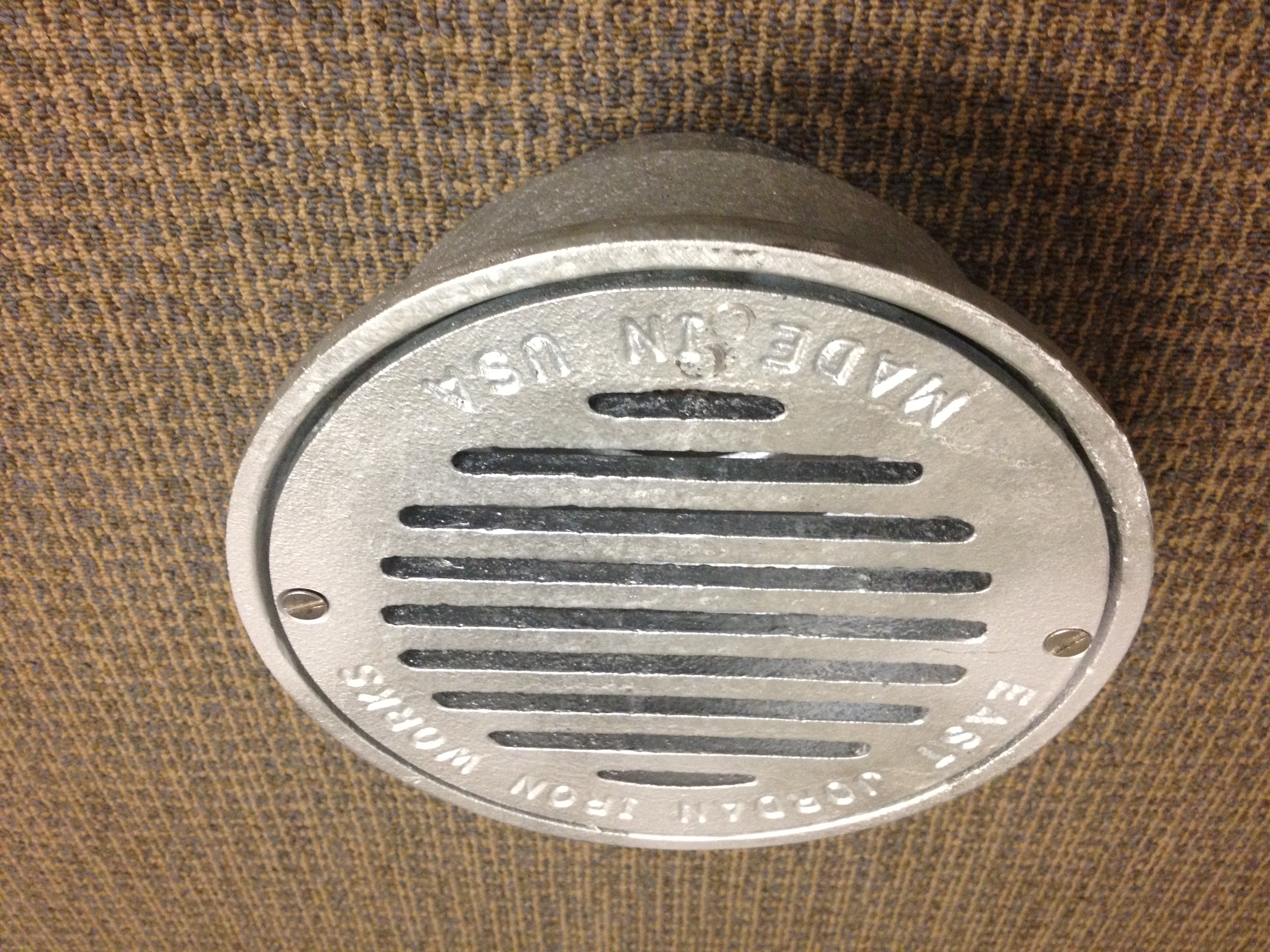

IMG 2563
Save To Favorites Print

LB 338-4

NON-TRAFFIC RATED AREA Drain Grate and Frame Assembly

Light duty, ADA rated and bicycle friendly cast iron drainage grate and frame assembly. Available with a galvanized coating or painted black. The assembly may be bolted with vandal resistant fasteners upon request.

Catalog Number Frame Height Outer Diameter of Outlet Outer Diameter of Grate Approximate Weight
LB 338-4A 5-1/4" 5-3/4" 8-1/2" 17 lbs
LB 338-4B 5-1/4" 5-3/4" 8-1/2" 17 lbs
