LB 24 10C GRATE AND FRAME Save To Favorites Print

CDOT D77B TYPE 24-10C FRAME AND GRATE

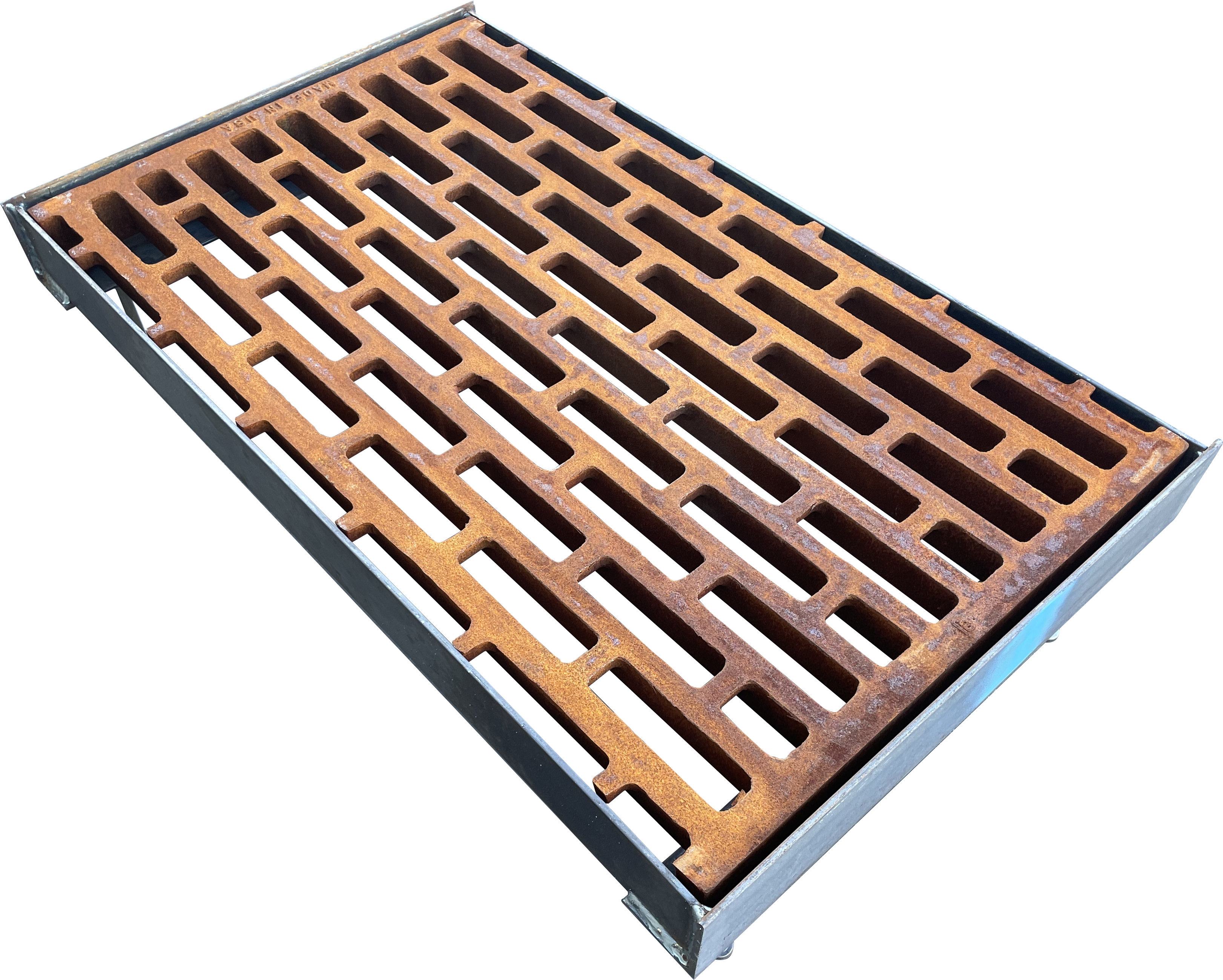

BICYCLE FRIENDLY Ductile Iron Grate and Steel Frame Assembly

Heavy duty traffic rated grate and frame assembly conforming to the STANDARD PLAN DRAWING for a number of cities, counties, agencies and organizations including the STATE OF CALIFORNIA (CALTRANS D77B), OCRDMD (OCEMA) and THE COUNTY OF RIVERSIDE. The ductile iron grate is bicycle friendly and support beams are available for structures requiring multiple grates. Assemblies are furnished galvanized or uncoated (bare finish).

Catalog Number AFCO Number Grate Width Grate Length Clear Opening of Frame
LB 24-10C A-1555 23-1/2" 40" 24" x 35-3/8""

Alhambra Foundry A-1555
