07 Misc. Metals-Flood Control, Storm Drains, Storm Sewer
SPPWC 151-3 PARKWAY DRAIN TYPE 1, TYPE 2

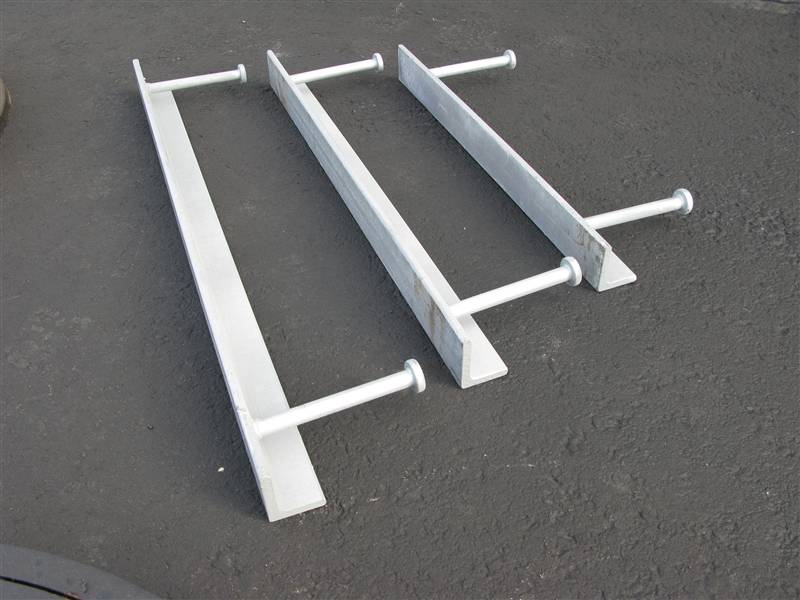

LB 410 A-3901 CURB INLET Structural Angle for Curb Inlets/Outlets and Parkway Drains
Structural steel angles measuring 2-1/2" x 2" x 3/8" or 3-1/2" X 3" X 1/2" with rounded head stud anchors for 4-1/2" concrete decks. Standard and custom angle angle lengths available for variable and skew S openings. Radius angles are also available for parkway inlets/outlet constructed in a street cul-de-sac.
Refer to SPPWC Standard Plan 152-3 for Type 1 hinged access cover and frame.
| Catalog Number | Angle Size | Approx. Weight |
|---|---|---|
| LB 410C | 3-1/2" x 3" x 1/2" | 5 |
| LB 410E | 2-1/2" x 2" x 3/8" | 2.5 |
* Note: Additional angle shapes and sizes are available.
