SPPWC 301-4 CURB OPENING CATCH BASIN WITH GRATING(S)

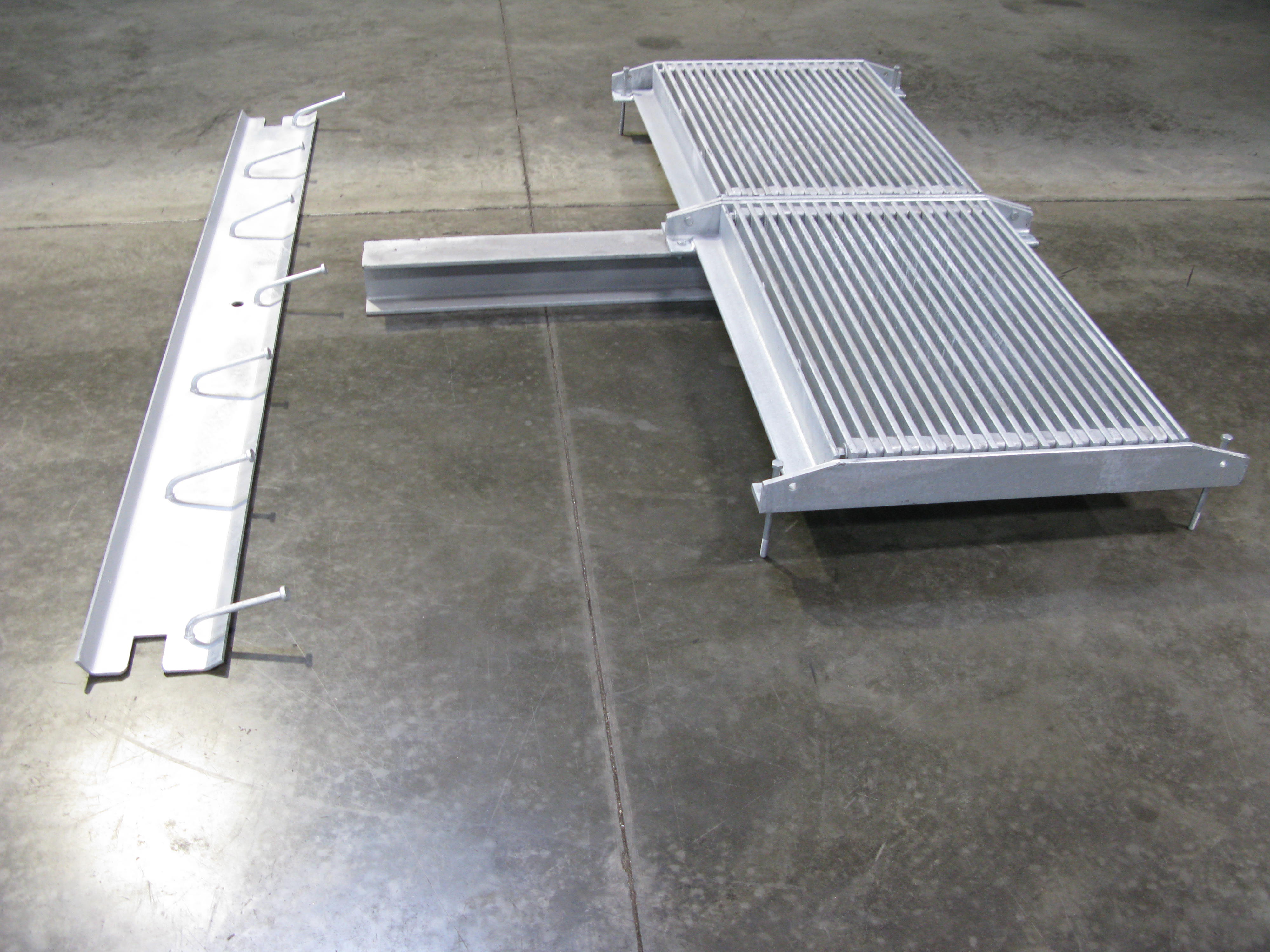

STEEL GRATES, FRAMES and CURB INLET HARDWARE and DEBRIS SKIMMER for CURB OPENING CATCH BASINS

Heavy duty traffic rated grate and frame assembly conforming to the STANDARD PLAN DRAWINGS for a number of cities, counties, agencies and organizations including SPPWC (APWA) 311-4, CITY OF RIVERSIDE, CITY OF OXNARD and RCFC & WCD.

Bicycle friendly carbon steel and cast ductile iron grates are also available (see our Models LB 324D, LB S-342-4). Grates and frames are furnished with a hot dipped galvanized finish and support beams are available for structures requiring multiple grates.

Catalog Number Grate Width Grate Length Clear Opening of Frame
SPPWC 311-4 25" 40" 25-1/2" X 35-3/8""
SPPWC BICYCLE FRIENDLY OPTION 25" 40" 25-1/2" X 35-3/8""
